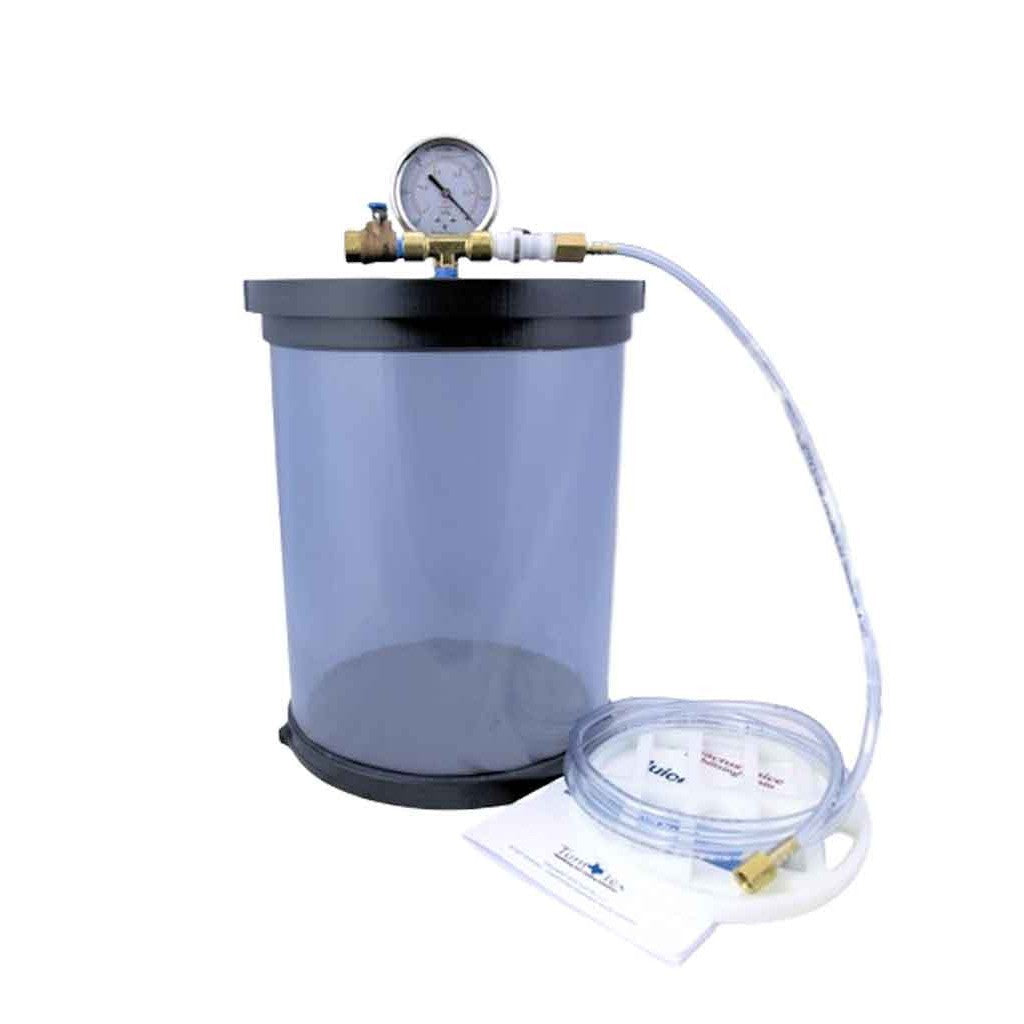

Cactus Juice JuiceProof Vacuum Chamber Systems - 8" diameter

This chamber is made from a clear plastic material to allow you to see through the chamber and better monitor the stabilizing process.  This "JuiceProof" chamber is virtually indestructible and maintenance-free.  It is impervious to Cactus Juice which allows you to leave the Juice in the chamber as long as you want.

Chamber size: 8" inside diameter x  your choice of length

Includes everything you need to connect to your vacuum pump and be up and running right out of the box, including:

• Custom designed hand made 8" diameter stabilizing chamber
• Custom machined fittings, including base with mounting tabs and top flange
• Pressure fit submersion plate to keep blanks submerged.
• The plate also works as a strainer when you empty the chamber
• CNC machined lid for ultimate vacuum and durability
• 2.5" Stainless steel liquid-filled vacuum gauge (made in China)
• Vacuum breaker system with valve (made in China)
• 72" x 3/16" ID clear vacuum hose with vacuum pump adapter and quick connect fittings
• 16-page color Instruction Manual and Stabilizing Handbook
• A vacuum pump is not included but can be purchased separately.

For initial foaming, it would help to have approximately 4-6" of headspace above your longest piece.  An occasional longer piece with less headspace will work fine, you will have to be more careful when beginning the stabilizing process.  In other words, if you want to regularly do 5 1/2" long pen blanks, this 10" chamber would be best, but you can still do the occasional 8" long peppermill blank without too much trouble.

Capacity  - 8 x 12" long Chamber and will hold -

2.61 gallons (9.88 L) of Cactus Juice when filled to the top or
1.74 gallons (6.59 L) of Cactus Juice with a minimum safe headspace of 4"

Of course, this is with the chamber empty.  You must estimate how much Cactus Juice your material will displace and adjust accordingly!

Con US shipping only
